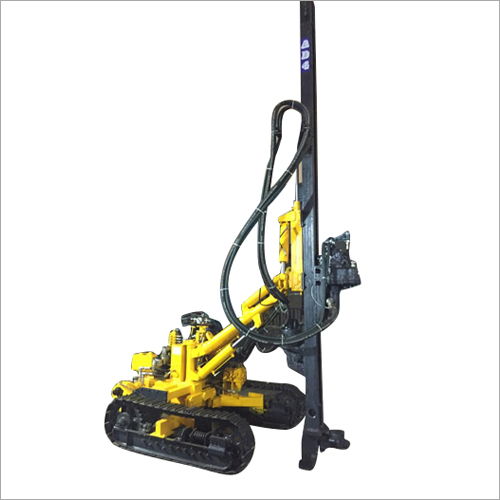

Quarry Drill Master - AD4

Quarry Drill Master - AD4
Quarry Drill Master - AD4
Send Inquiry
Product Code : 05
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price Range
  • 1350000.00 - 2800000.00 INR
Product Specifications
  • Product Type
  • machine
  • Color
  • ed grey/yellow
Product Description

We are actively engaged in producing high tensile of Quarry Drill Rig in compliance to meet the international quality standards. It is extremely demanded in different industries for drilling rocky and other construction areas. This unit is strongly built with abrasion resistance and temperature proof material to use for several years without any difficulty.

Drilling Ability : 25M To 30M

Specification :

Description

Metric

English

Drill Guide Movement . Swing . Dump

90o 75o

90o 75o

Horizontal Drilling Range . Width . Height

1500 mm 2520 mm

59.05 inch 99.21 inch

Boom Movement . Above Center Line . Below Center Line

45o 30o

45o 30o

Overall Length

4800 mm

189 inch

Overall Length (Less Boom & Drill Guide)

2200 mm

86.61 inch

Overall Width

1800 mm

71 inch

Height (Tramming)

1670 mm

65.75 inch

Height (Less Boom)

1300 mm

51.181 inch

Ground Clearance

240 mm

9.5 inch

Min. Height from ground

875 mm

34.44 inch

Grouser Width

220 mm

8.66 inch

Track Length (Ground Contact)

1300 mm

51.18 inch

Overall Track Length

1860 mm

73.22 inch

Track Oscillation

20o

20o

Climbing Ability

30o

30o

Tramming Speed

3.5 kmph

2.2 mph

Propel Motor

3.8 KW

5.10 HP

Hydraulic Pump Motor

5.8 KW

7.77 HP

Air Compressor

450 cfm - 550 psi


Depth Of Drilling

20 m

787.402 inch

Hole Diameter

115 mm - 120 mm

4.527 inch - 4.72 inch

Draw Bar Pull

1350 kgf

2980 lbs

Feed Motor Pull Down Pull Up

1825 Kg 1730 Kg

4023.46 lbs 3813.99 lbs

Total Weight

2500 Kg

5515 lbs

Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cash Advance (CA)
  • Packaging Details
  • Wooden box For Smaller Machine Plastic Wrap For Bigger machine Packing Charges will be 2 percent of product price.
  • Main Domestic Market
  • All India
